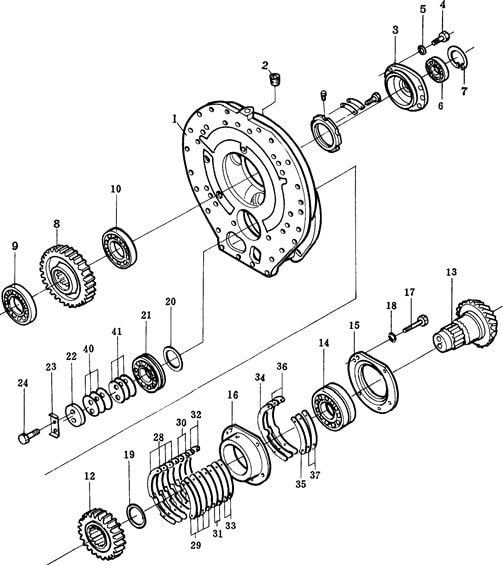

Коробка передач
bolt
washer, spring
case
ring, snap
bearing
plug, taper
rear housing
bearing
gear
bearing
shaft, pinion
bolt
washer, spring
spacer
cover
bearing
bearing
cage, bearing
plate, snap
plate, lock
bolt
0.3mm shim, 0.3mm(175-15-13470)
0.3mm shim, 0.3mm(175-15-13540)
0.2mm shim, 0.2mm(175-15-13520)
0.2mm shim, 0.2mm(175-15-13311)
1.0mm shim, 1.0mm(175-15-13380)
0.3mm shim, 0.3mm(175-15-13470)
0.2mm shim, 0.2mm(175-15-13311)
spacer
gear
0.3mm shim, 0.3mm(175-15-13480)
0.2mm shim, 0.2mm(175-15-13331)
1.0mm shim, 1.0mm(175-15-13390)
0.3mm shim, 0.3mm(175-15-13480)
0.2mm shim, 0.2mm(175-15-13331)
